SPFIDW5-1309-X
Home
Superchef
|
Products
|
dishwasher-cooling (Spare parts)
|
SPFIDW5-1309-X
SPFIDW5-1309-X
SPFIDW5-1309-X
Please select the desired spare part

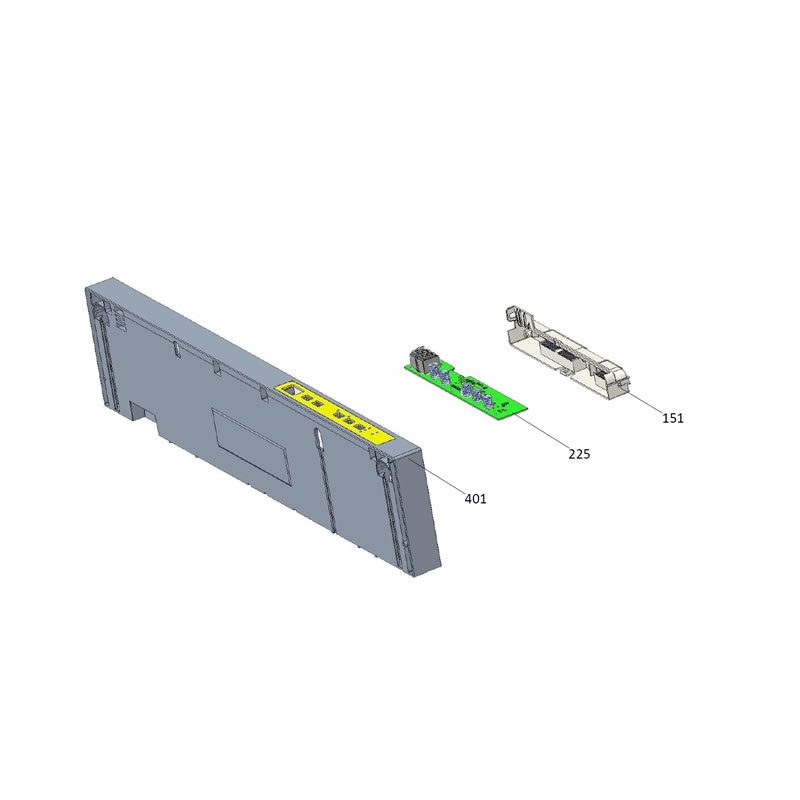

DISPLAY BOX/NH-FREYA (151)
DIS.KART I5/ONETOUCH/WHITE (225)
CON.PAN.GR.SGF/OI54/HAFELE(HDW-F60F) (400)
CON.PAN.SRGF/OI54/HAFELE(HDW-F60F) (401)

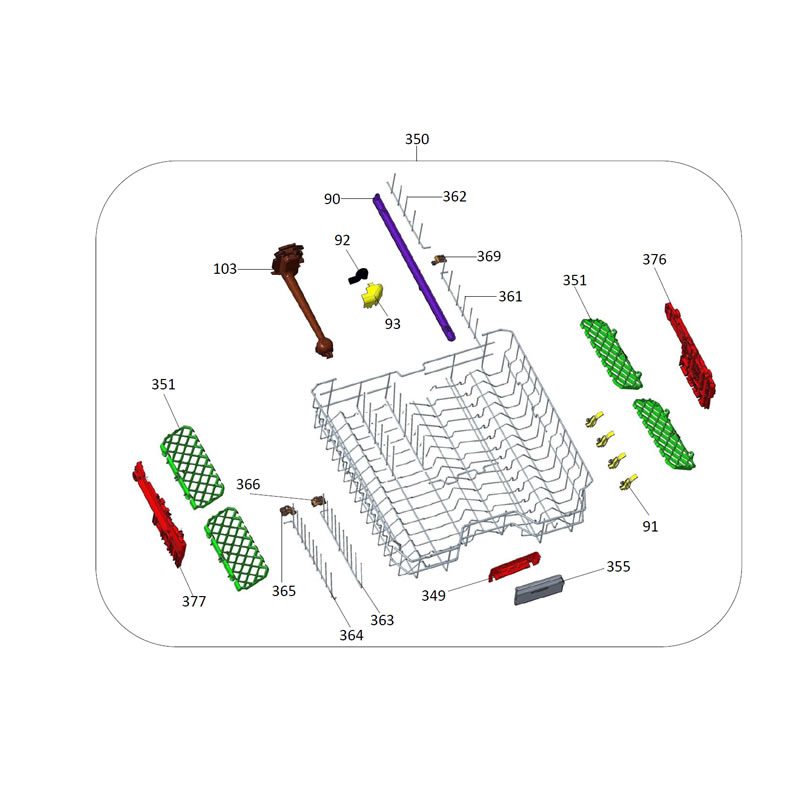

DIRECT WASH SHAFT GR (90)
DIRECT WASH TILT WALL RAL 3002 (91)
DIRECT WASH HOSE-YAM (92)
DIRECT WASH HOSE COVER-3 YAM (93)
UPPER SPRAY ARM SUPPORT GR/MULTI/3 YAM (103)
UPPER BASKET HANDLE-3-BACK (349)
ÜSG-V2/DWK-6YT/DYA3K-4A-KK-T3G (350)
UPPER BASKET MUGSHALF GR-TPE (351)
ÜST SEPET TUT GR-3-GRİ MTL EST (355)
FOLDING SPIKES-RIGHT FRONT/V2 (361)
FOLDING SPIKES-RIGHT BACK/V1-V2 (362)
FOLDING SPIKES-MIDDLE FRONT/V2 (363)
FOLDING SPIKES-LEFT FRONT V1-V2 (364)
FOLDING SPIKES MECHANISM-1 (365)
FOLDING SPIKES MECHANISM-2 (366)
FOLDING SPIKES MECHANISM-3 (369)
HAM GR-RIGHT/3KDM/RED/UVC (376)
HAM GR-LEFT/3KDM/RED/UVC (377)

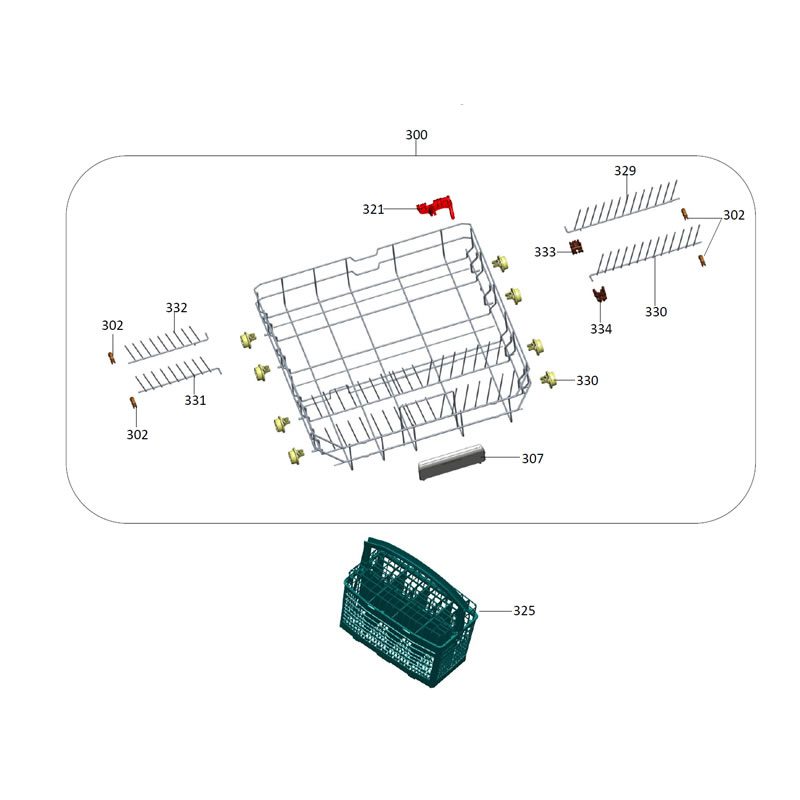

LOWER BASKET GROUP (300)
LOWER BASKET WHEEL (301)
SLIDING COMB HOLDER PLASTIC (302)
LOWER BASKET HANDLE (307)
LOWER BASKET PLASTIC STOPPER (321)
PLASTIC CUTLERY BASKET (325)
RIGHT BACK LEVEL COMB (329)
RIGHT FRONT SLEEVE (330)
LEFT FRONT COMB (331)
LEFT BACK LEFT (332)
LOWER BASKET LITTLE COMB ROTATING MECHANISM-2A (333)
LOWER BASKET LITTLE COMB ROTATING MECHANISM-2B (334)

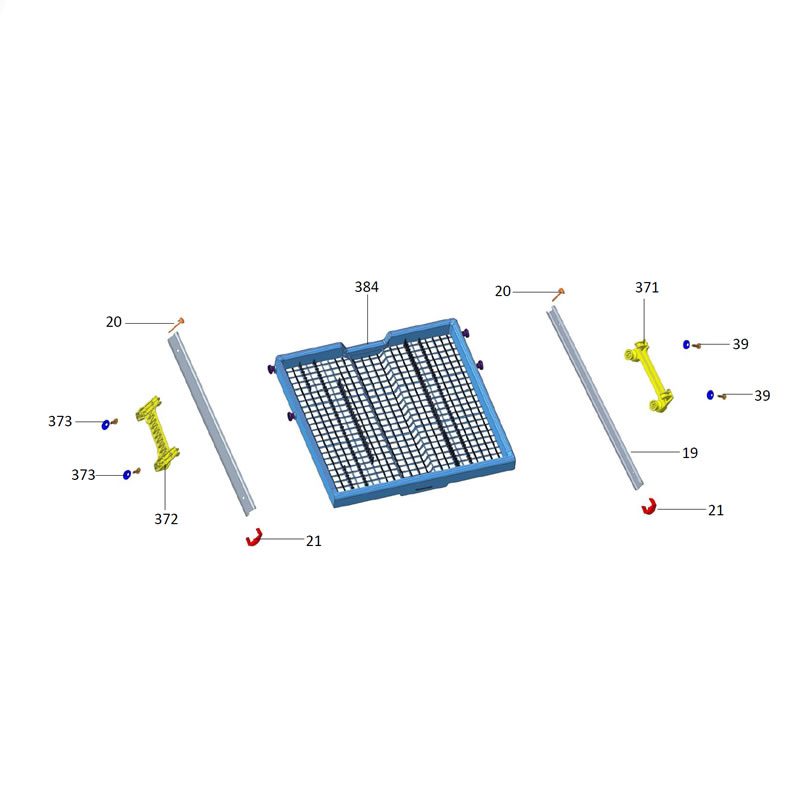

UPPER BASKET RAIL(458*0,8*50) (19)
UPPER BASKET STOPPER-REAR-RAL 7046 (20)
UPPER BASKET RAIL LOCK-FRONT-2 (21)
SCREW PT5X20 TORX WITH RONDELA/GEOMET (39)
3.BASKET BRACKET GR-RIGHT (371)
3.BASKET BRACKET GR-LEFT (372)
3.BASKET BRACKET WASHER (373)
3.BASKET ECO BASKET SHELF GRUP-2 (384)
SCREW PT4X12 YSB (F.LI) (44)
SCREW PT4X7 YSB(F.LI) INOX (97)
NTC/SLIM (76)
BOTTOM FEEDING CHANNEL-TW FOUNTAIN GR (95)
UPPER FISKİYE FEED.KAN.GR/ (100)
TOP SWITCH ADAPTER DOOR (104)
UPPER SPRAY ARM 3 (107)
TOP FOUNTAIN GR-RAL 7046/2 (108)
UPPER SPRAY ARM GR/ (103)
UPPER SPRAY ARM NUT PLS D28XT1,2 (109)
UPPER SPRAY ARM NUT-RAL 7046 (111)
UPPER SPRAY ARM SHAFT WITHOUT O-RING (112)
UPPER FOIN-RAL 7046/2 (113)
LOWER FOIN-RAL 7046/2 (114)
MICROFILTER GR-PLYSTR/AB/RAL 3002/ (115)
COVERFILTER (116)
MICROFILTRE-POLYESTER/ (117)
SCREW PT4X12 YSB INOX (118)
CLAMP Dmax36 ,4X14 SPRING (ENGINE-HEA.CA.) (120)
CLAMP Dmax41X14,8 SPRING (ENGINE-POOL) (121)
CLAMP (123)
TIP TYPE CLAMP D30 (124)
DISCHARGE HOSE 200 CM (125)
POOL/SGK/MULTI/FT (126)
POOL SEAL (127)
LOWER SPRAY BED 2/FOUR OUTPUT (128)
LOWER FOOD CHANNEL GR (129)
TRIPLE WASH FOUNTAIN GR RAL 3002 (130)
CLAMP Dmax19 ,6X8,8 SPRING (SALT CONTAINER-AIR.) (152)
HOSE D12*3*160(SALT CONTAINER-POOL)PVC/IPSZ (153)
TIP TYPE CLAMP D37 (159)
HEATER CASING O-RING/ (175)
Propeller GR (195)
TOP TUB RUBBER (196)
HVZ GROUP (199)
HOSE HEATER-POOL/45 (611)
HOSE BLDC-HEATER/FT/45 (612)
TIP TYPE CLAMP /FLOW THROUGH (613)
HOSE(BLDC-DIVIZER/FT)/45 (651)

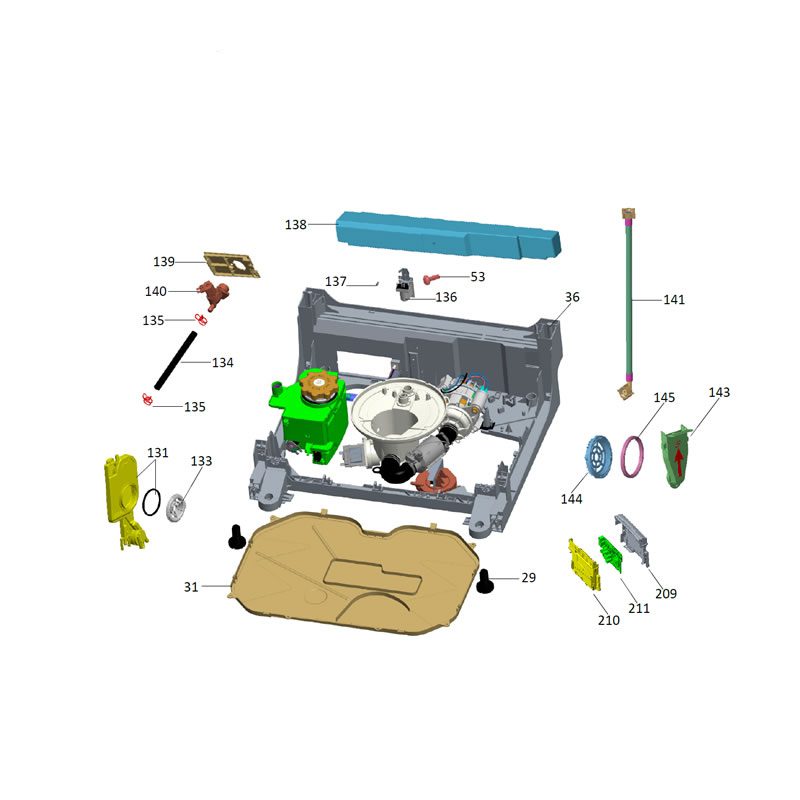

ADJUSTABLE FEET (29)
BOTTOM COVER (31)
LOWER BASEMENT (36)
SCREW 4X42,5 YHB (53)
BASEMENT GROUP (29-36-89-137-170 CONTAINS POSITION NUMBERS) (89)
WATER INLET VALVE GROUP/FT (140-139-134-135) (94)
AIR BREAK GROUP (131)
AIR BREAK NUT (133)
HOSE D10*3*230 (134)
CLAMP Dmax16.8x8.4 (135)
NOISE FILTER (136)
VİDAPT3X9 YSB (137)
CONCRETE WEIGHT (138)
LOWER BASE HOSE CONNECTION PLS. (139)
WATER INLET VALVE (140)
WATER INLET HOSE (141)
ACTIVE DRYING UNIT (143)
CONDENSING UNIT GASKET (144)
CONDENSING UNIT NUT (145)
PCB (ELECTRONIC BOARD) BOX (209)
PCB (ELECTRONIC BOARD) BOX COVER (210)
PCB (ELECTRONIC BOARD) (211)

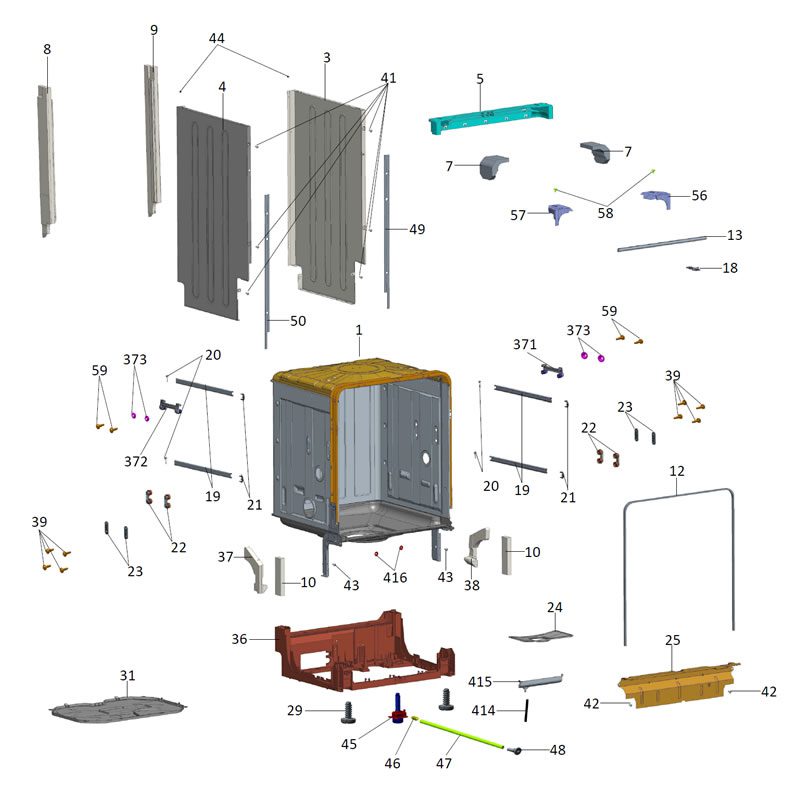

TUB ASSEMBLY (1)
SPS TALL TUB UNDERTABLE-RIGHT/PNTD (3)
SPS TALL TUB UNDERTABLE-LEFT/PNTD (4)
REAR UPPER PLS.CROSS BAR (5)
TUB TOP CORNER STYROFOAM (7)
ARKA CROSSBAR STRAFORU-SOL/ (8)
ARKA CROSSBAR STRAFORU-SAĞ/ (9)
KESME ÖN CROSSBAR STRAFORU/NEW (10)
TUB GASKET (12)
TOP TUB OF GASKET/GREY-2 (OPTIONAL PART) (13)
DOOR HOOK/PLASTIC (18)
UPPER BASKET RAIL CON.BRA.GR-3 (22)
UPPER BASKET RAIL CON.BRA -REAR (23)
METAL FILTER-2 (24)
KICK PLATE(60) 600*0,5*234 (25)
BUILT IN FOOT (29)
LOWER COVER/YH (31)
BASEMENT GR/ANKASTRE (36)
TUB LOWER CORNER STYROFOAM-LEFT (37)
TUB LOWER CORNER STYROFOAM-RIGHT (38)
SCREW ST 3.9X9.5 PAN HEAD (S) (41)
SCREW PT3,5X9 YSB (42)
SCREW M4X10 YSB SPIRAL (43)
SCREWPT4X12YSB (44)
BUILT IN ADJUSTMENT MECHANISM (45)
BUILT IN WORM GEAR (46)
BUILT-IN HEIGHT MEC.AXLE (47)
BUILT IN ADJUSTMENT MEC.FRONT COVER (48)
TUB BORDER GASKET-RIGHT/GREY/ (49)
TUB BORDER GASKET-LEFT/GRİ/ (50)
UPPER TRAY SUPPORT PART/RIGHT/NEW (56)
UPPER TRAY SUPPORT PART/LEFT/NEW (57)
SCREW TT M4*6 YSB-T-F (58)
SCREW PT5X13 TORX WITH RONDELA (59)
OVERFLOW PLASTİC HOSE/PVC/UNSTRUNG (414)
OVERFLOW PLASTIC (415)
BOTTOM TUB OVERFLOW GASKET (416)

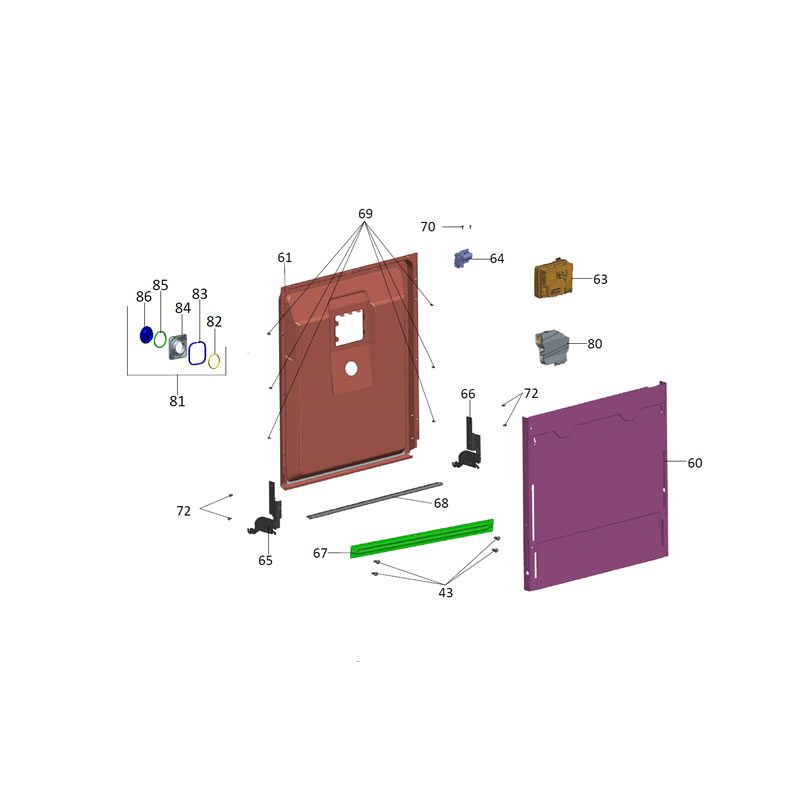

FRONT PANEL (60)
INNER DOOR GROUP (61)
SLIDE DISPANSER WITH (63)
DOOR LOCK-2 (64)
HINGE MOV. PART 2-LEFT/COA190*2,5*90/HOT (65)
HINGE MOV. PART2-RIGHT/COA190*2,5*90/HOT (66)
HINGE PART BRACKET 2(60)600*0,5*45 (67)
DOOR SEAL-1 (68)
SCREW SAC 3,9X12 YHB INOX (69)
SCREW PT4X14 YHB INOX (70)
M5X10THB(T.LI)500H/ELF THREADING METRIC (72)
UVON- IYON BACK-MODULE GR (80)
UVON-IYON PRE-MODULE GR (81)
IYONIZER INTERIOR CANAL CONTA (82)
IYONIZER TEETH CANAL CONTA (83)
IONIZER BODY (84)
IYONIZER LENS CONTA (85)
CIRCULAR LENS (86)

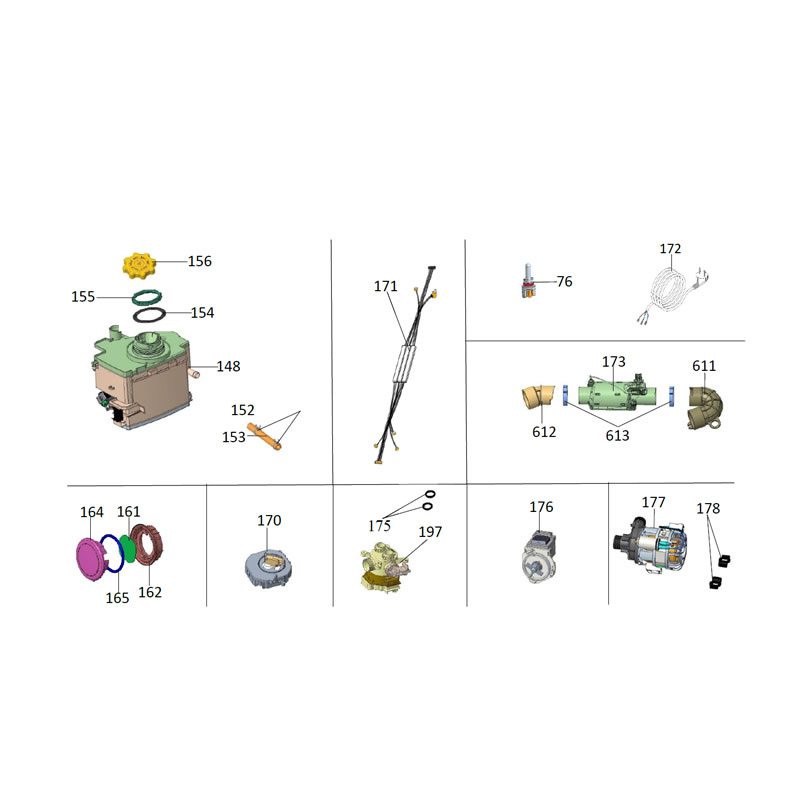

WATER SOFTENER GR (148)
CLAMP (SALT CONTAINER-POOL) (152)
HOSE (SALT CONTAINER – POOL) (153)
SALT CONTAINER NUT GASKET (154)
NUT OF SALT CONTAINER (155)
SALT CAP GROUP (156)
LED ELECTRONIC CARD (161)
LED MODUL BODY (162)
LED MODÜL COVER GR (Contains POS 164-165) (163)
LED MODUL COVER-UV (164)
LED MODÜL CONTA (165)
FLOATER (170)
CABLE HARNESS (171)
POWER CABLE (172)
HEATER CASING (173)
HEATER CASING GASKET (BETWEEN DIVISOR POOL) (175)
DRAIN PUMP (176)
WASHING PUMP HANGER (178)
WASHING PUMP (177)
DIVISOR (197)
HOSE HEATER-ECO (611)
HOSE PUMP HEATER (612)
TYPE CLAMP/FLOW THROUGH (HEATER) (613)

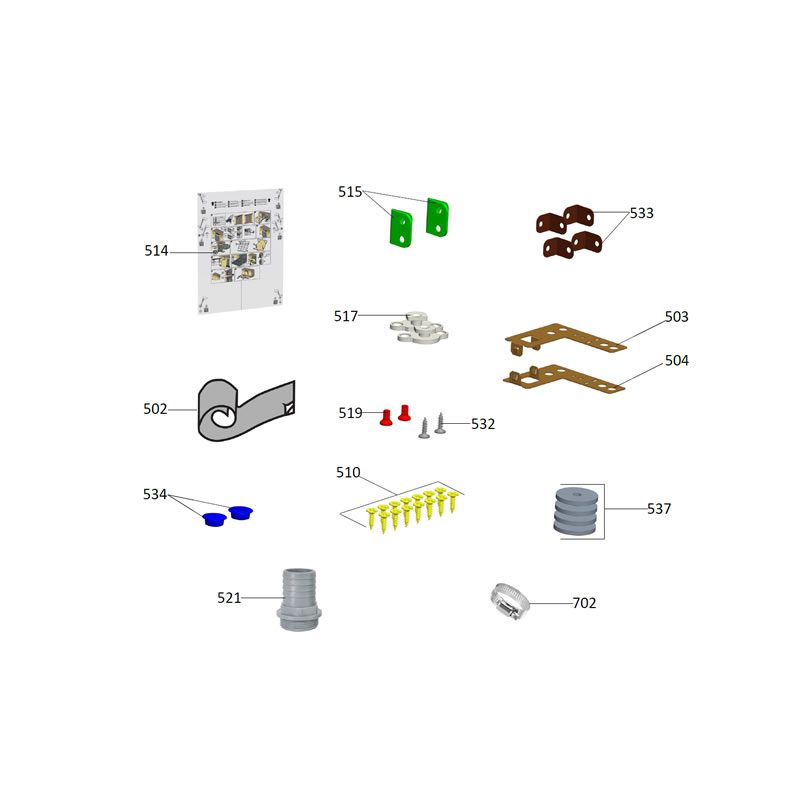

ANK.MAL.GR/KYR-TALL/RHEA/40 (500)
METAL MAL.GR/KAYAR/40MM/BYZ (513)
STEAM PREVENTER FOIL (502)
FITTING S.IRON FOR BENCH-LEFT/COVERING (503)
FITTING S.IRON FOR BENCH/COVERING (504)
SCREW 4X15 YHB (510)
MONT.PLAN/KAYAR(TALL)/RHEA/40MM (514)
BRACKET 40 MM (515)
WASHER (ID4xOD15x1.6mm) (518)
SCREW M5X16 PAN HEAD(S.) (519)
1/2 HOSE RAKOR(SEAL) (OPTIONAL) (521)
SCREW 4X25 YHB (532)
INSTALLATION BRACKET 4 POINT (OPTIONAL) (533)
PLS. COVER SLIDING DOOR (OPTIONAL) (534)
WASHER (ID4xOD15x1.6mm) (OPTIONAL) (537)
SCREW TYPE CLAMP D20-32*9 (OPTIONAL) (702)

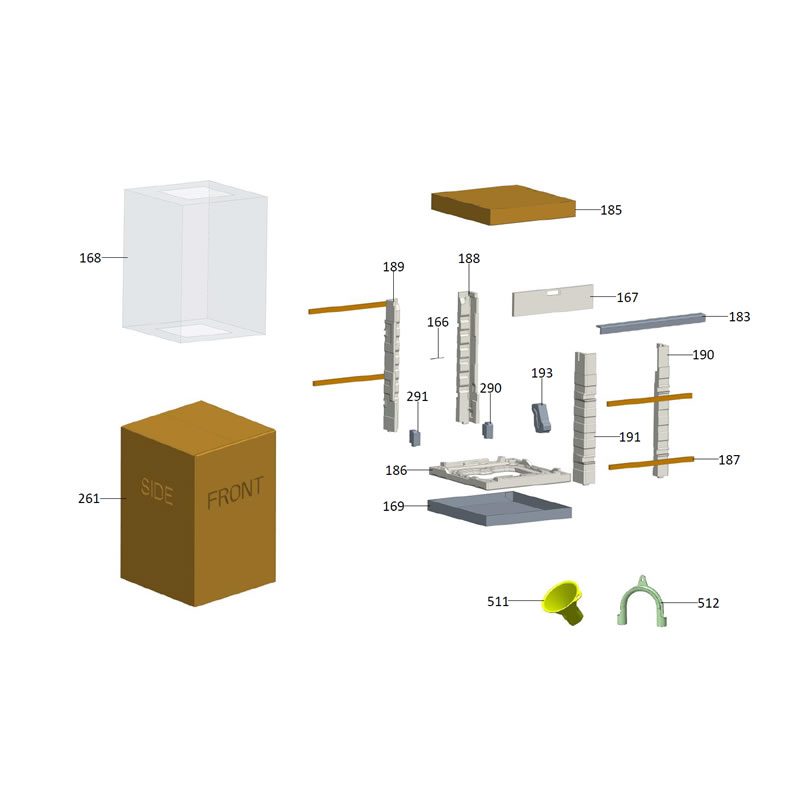

DRAIN HOSE CONNECTING WIRE (166)
ANK. PROTECTIVE COVER-LOGO (OPTIONAL) (167)
SHRINK(50µM) (168)
BOTTOM CARTON (OPTIONAL) (169)
KOSEBENT CARTON-L (OPTIONAL) (183)
TOP CARTON (185)
D20/BASE Styrofoam/STD (186)
WOOD (187)
REAR BAR STRF-RIGHT (188)
REAR BAR STRF-LEFT (189)
BUILT-IN/FRONT BRACKET STRF-RIGHT (190)
BUILT-IN/FRONT BRACKET STRF-LEFT (191)
ANK.BASE SUPPORT STORAGE (193)
CARTON BOX (OPTIONAL) (261)
REAR CORNER SUPPORT STORAGE-RIGHT (290)
REAR CORNER SUPPORT STORAGE-LEFT (291)
SALT FUNNEL (OPTIONAL) (511)
DISCHARGE HOSE HANGER (OPTIONAL) (512)
